  • WIDIA/KENNAMETAL GT705005 M8-1.25MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal DLC

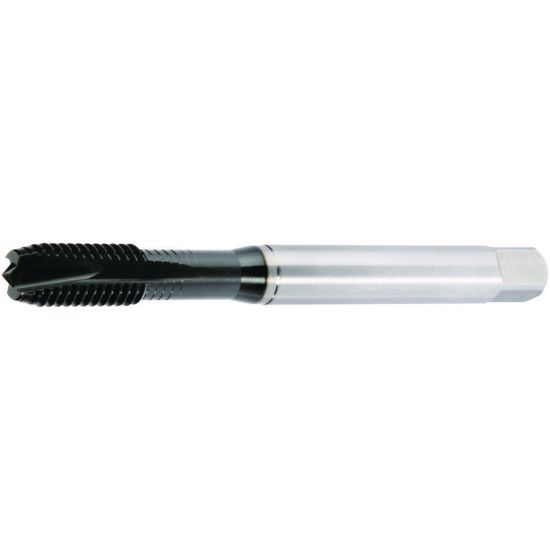

Picture of WIDIA/KENNAMETAL GT705005 M8-1.25MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal DLC

WIDIA/KENNAMETAL GT705005 M8-1.25MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT705005
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Coating DLC
Package Size 1
Made In USA No
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Dimensional Specifications
Tap Chamfer 3.0P-5.5P
Thread Limit 6H
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 2
Length Type Standard
Dimension Standard DIN/DIN
Thread Size M8
Thread Type Metric
Shank/Pilot Dia 0.3150 8.00MM
Tap Type Plug
Thread Pitch 1.25MM
Tool Material Steel
Overall Len 3.5430 89.99MM
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2440
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Energy Yes
