  • WIDIA/KENNAMETAL GT705004 M6-1.00MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal DLC

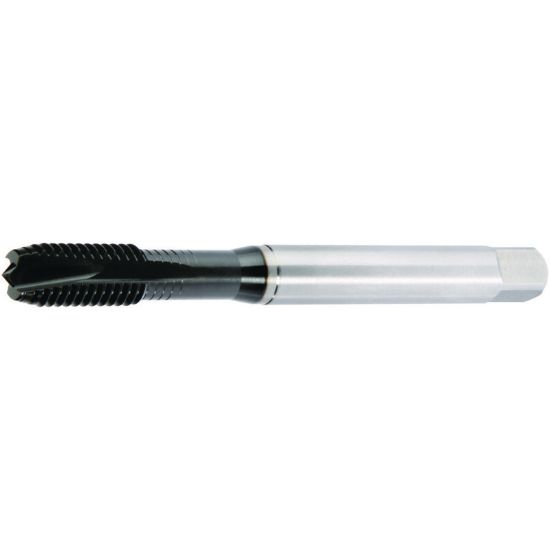

Picture of WIDIA/KENNAMETAL GT705004 M6-1.00MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal DLC

WIDIA/KENNAMETAL GT705004 M6-1.00MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT705004
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Ohio
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Made In USA No
Performance Rating High Performance
Coating DLC
Dimensional Specifications
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 2
Tap Square 0.1930
Tap Style Cut Spiral Point
Tap Chamfer 3.0P-5.5P
Thread Type Metric
Overall Len 3.1560 80.16MM
Tap Type Plug
Tool Material Steel
Thread Size M6
Dimension Standard DIN/DIN
Flute Direction R - Right
Length Type Standard
Shank/Pilot Dia 0.2362 6.00MM
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
