  • WIDIA/KENNAMETAL GT705002 M4-0.70MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal DLC

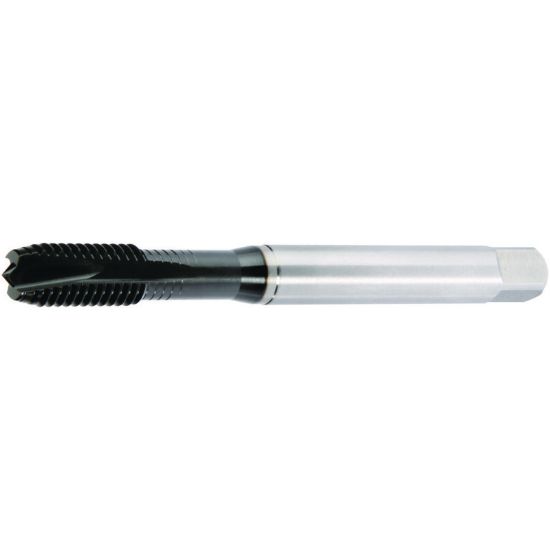

Picture of WIDIA/KENNAMETAL GT705002 M4-0.70MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal DLC

WIDIA/KENNAMETAL GT705002 M4-0.70MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT705002
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Shipping State Ohio
Coating DLC
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Pitch 0.70MM
Thread Type Metric
Thread Size M4
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1772 4.50MM
Tap Style Cut Spiral Point
Tap Chamfer 3.0P-5.5P
Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Type Plug
Overall Len 2.4850 63.12MM
Thread Limit 6H
Tool Material Steel
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 2
Length Type Standard
Dimension Standard DIN/DIN
Tap Square 0.1340
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
