  • WIDIA/KENNAMETAL GT705001 M3-0.50MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal DLC

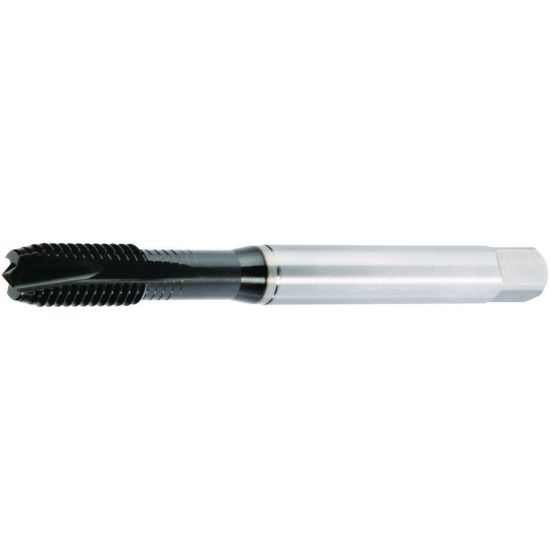

Picture of WIDIA/KENNAMETAL GT705001 M3-0.50MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal DLC

WIDIA/KENNAMETAL GT705001 M3-0.50MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT705001
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Performance Rating High Performance
Shipping State Ohio
Coating DLC
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 2
Length Type Standard
Tool Material Steel
Thread Size M3
Thread Type Metric
Overall Len 2.2050 56.01MM
Drill Range 0.1083 2.75MM - 0.1106 2.81MM
Tap Type Plug
Shank/Pilot Dia 0.1370 3.48MM
Thread Pitch 0.50MM
Tap Square 0.1060
Tap Chamfer 3.0P-5.5P
Dimension Standard DIN/DIN
Thread Limit 6H
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
