  • WIDIA/KENNAMETAL GT625520 M10-1.50MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

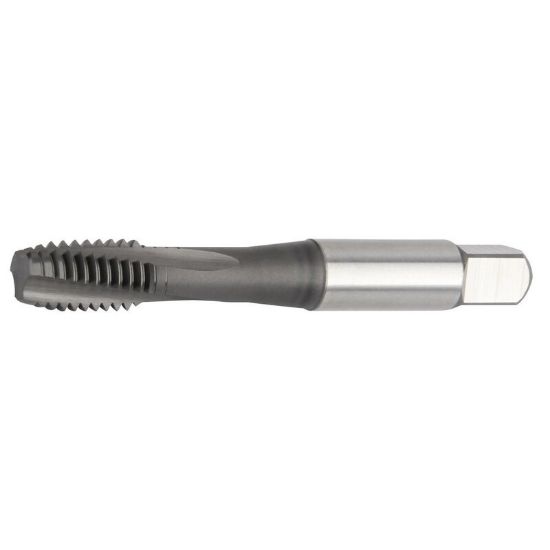

Picture of WIDIA/KENNAMETAL GT625520 M10-1.50MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

WIDIA/KENNAMETAL GT625520 M10-1.50MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT625520
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Mod Bottom Tapping, Tapping
Performance Rating High Performance
Coating TiN + CrC
Made In USA No
Package Size 1
Shipping State Ohio
Dimensional Specifications
Flutes/Inserts 3
Thread Pitch 1.50MM
Flute Direction R - Right
Overall Len 2.9370 74.60MM
Tap Square 0.2840
Length Type Standard
Tool Material Steel
Thread Limit D6
Cut Rating High Temp, Titanium
Shank/Pilot Dia 0.3810 9.68MM
Machine Side Connection Type Tap Collet
Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Size M10
Thread Type Metric
Dimension Standard ANSI/ANSI
Tap Chamfer 2.5P-3.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
