  • WIDIA/KENNAMETAL GT625518 M10-1.25MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

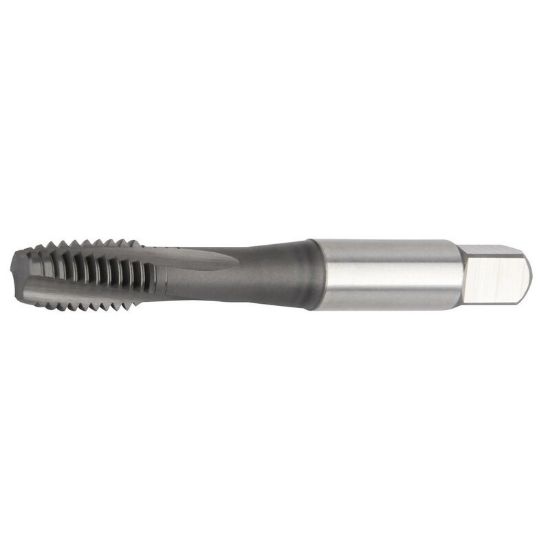

Picture of WIDIA/KENNAMETAL GT625518 M10-1.25MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

WIDIA/KENNAMETAL GT625518 M10-1.25MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT625518
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Ohio
Package Size 1
Performance Rating High Performance
Made In USA No
Coating TiN + CrC
Dimensional Specifications
Tap Style Cut Spiral Flute
Thread Limit D5
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Flutes/Inserts 3
Flute Direction R - Right
Cut Rating High Temp, Titanium
Shank/Pilot Dia 0.3810 9.68MM
Length Type Standard
Thread Pitch 1.25MM
Tool Material Steel
Overall Len 2.9370 74.60MM
Tap Square 0.2840
Thread Size M10
Thread Type Metric
Dimension Standard ANSI/ANSI
Drill Range 0.3425 8.70MM - 0.3555 9.03MM
Tap Chamfer 2.5P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
