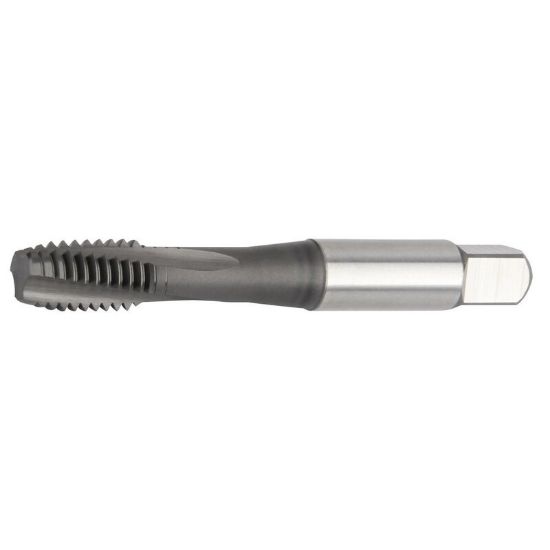

Picture of WIDIA/KENNAMETAL GT625516 M8-1.25MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

WIDIA/KENNAMETAL GT625516 M8-1.25MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT625516
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating TiN + CrC
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Ohio
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Tap Style Cut Spiral Flute
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Thread Pitch 1.25MM
Flutes/Inserts 3
Thread Size M8
Thread Type Metric
Tap Chamfer 2.5P-3.0P
Thread Limit D5
Machine Side Connection Type Tap Collet
Tap Square 0.2360
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Overall Len 2.7000 68.58MM
Flute Direction R - Right
Cut Rating High Temp, Titanium
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
