  • WIDIA/KENNAMETAL GT625514 M7-1.00MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

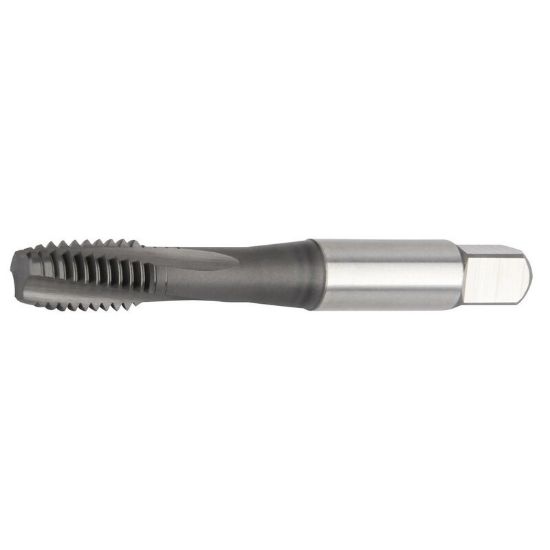

Picture of WIDIA/KENNAMETAL GT625514 M7-1.00MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

WIDIA/KENNAMETAL GT625514 M7-1.00MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT625514
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Cut Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Ohio
Coating TiN + CrC
Made In USA No
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Tap Chamfer 2.5P-3.0P
Thread Size M7
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 3
Thread Pitch 1.00MM
Thread Limit D5
Machine Side Connection Type Tap Collet
Tap Square 0.2360
Flute Direction R - Right
Overall Len 2.7200 69.09MM
Length Type Standard
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Cut Rating High Temp, Titanium
Thread Type Metric
Drill Range 0.2346 5.96MM - 0.2449 6.22MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Agricultural YES
Energy Yes
