  • WIDIA/KENNAMETAL GT625512 M6-1.00MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

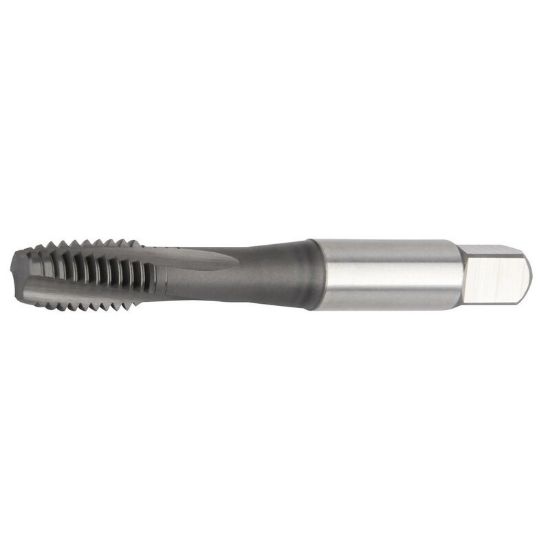

Picture of WIDIA/KENNAMETAL GT625512 M6-1.00MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

WIDIA/KENNAMETAL GT625512 M6-1.00MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT625512
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Coating TiN + CrC
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Ohio
Dimensional Specifications
Thread Pitch 1.00MM
Thread Limit D5
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Type Mod Bottom
Flute Direction R - Right
Cut Rating High Temp, Titanium
Length Type Standard
Overall Len 2.5000 63.50MM
Tap Style Cut Spiral Flute
Thread Type Metric
Dimension Standard ANSI/ANSI
Tap Chamfer 2.5P-3.0P
Tool Material Steel
Flutes/Inserts 3
Tap Square 0.1890
Thread Size M6
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
