  • WIDIA/KENNAMETAL GT625511 M6-1.00MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

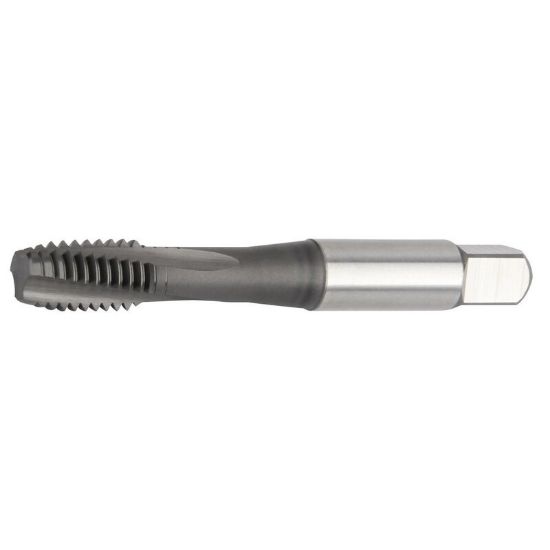

Picture of WIDIA/KENNAMETAL GT625511 M6-1.00MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

WIDIA/KENNAMETAL GT625511 M6-1.00MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT625511
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Ohio
Package Size 1
Coating TiN + CrC
Dimensional Specifications
Flute Direction R - Right
Cut Rating High Temp, Titanium
Length Type Standard
Thread Size M6
Flutes/Inserts 3
Dimension Standard ANSI/ANSI
Tap Square 0.1890
Thread Pitch 1.00MM
Thread Limit D5
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Type Mod Bottom
Shank/Pilot Dia 0.2550 6.48MM
Tap Style Cut Spiral Flute
Thread Type Metric
Tap Chamfer 2.5P-3.0P
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Mold Yes
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
