  • WIDIA/KENNAMETAL GT625508 M4-0.70MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

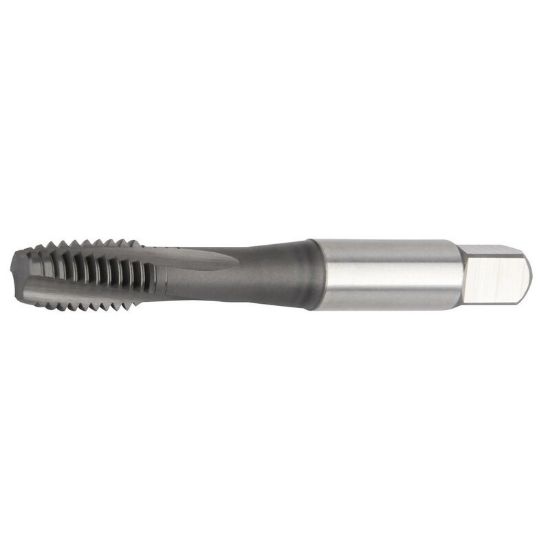

Picture of WIDIA/KENNAMETAL GT625508 M4-0.70MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

WIDIA/KENNAMETAL GT625508 M4-0.70MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT625508
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating TiN + CrC
Made In USA No
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Tap Style Cut Spiral Flute
Thread Limit D4
Tool Material Steel
Length Type Standard
Flute Direction R - Right
Cut Rating High Temp, Titanium
Shank/Pilot Dia 0.1680 4.27MM
Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Thread Pitch 0.70MM
Thread Type Metric
Dimension Standard ANSI/ANSI
Tap Chamfer 2.5P-3.0P
Overall Len 2.1250 53.98MM
Flutes/Inserts 3
Thread Size M4
Machine Side Connection Type Tap Collet
Tap Square 0.1290
Tap Type Mod Bottom
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
