  • WIDIA/KENNAMETAL GT625507 M4-0.70MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

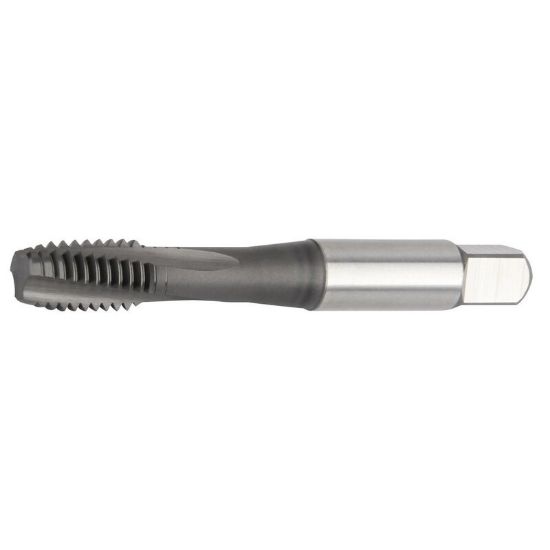

Picture of WIDIA/KENNAMETAL GT625507 M4-0.70MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

WIDIA/KENNAMETAL GT625507 M4-0.70MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT625507
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN + CrC
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Ohio
Dimensional Specifications
Thread Limit D4
Tool Material Steel
Thread Pitch 0.70MM
Dimension Standard ANSI/ANSI
Thread Type Metric
Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Chamfer 2.5P-3.0P
Tap Style Cut Spiral Flute
Thread Size M4
Machine Side Connection Type Tap Collet
Tap Square 0.1290
Tap Type Mod Bottom
Flute Direction R - Right
Cut Rating High Temp, Titanium
Shank/Pilot Dia 0.1680 4.27MM
Length Type Standard
Overall Len 2.1250 53.98MM
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
Aerospace Yes
Mold Yes
