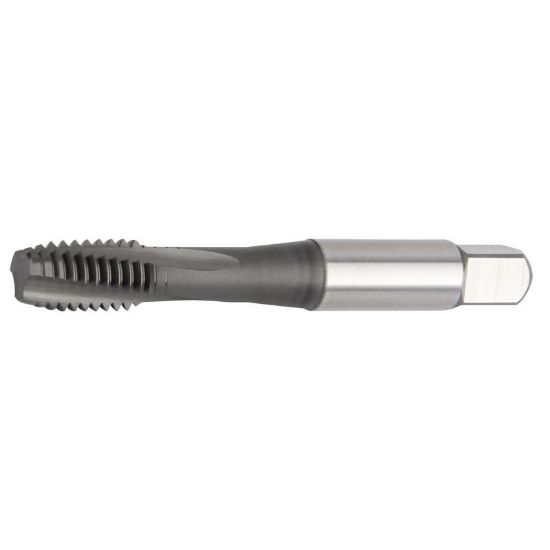

Picture of WIDIA/KENNAMETAL GT625505 M3-0.50MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

WIDIA/KENNAMETAL GT625505 M3-0.50MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT625505
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Application Tapping, Mod Bottom Tapping, Cut Tapping
Performance Rating High Performance
Package Size 1
Coating TiN + CrC
Made In USA No
Dimensional Specifications
Thread Pitch 0.50MM
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1410 3.58MM
Thread Size M3
Dimension Standard ANSI/ANSI
Drill Range 0.1083 2.75MM - 0.1106 2.81MM
Tap Chamfer 2.5P-3.0P
Thread Type Metric
Overall Len 1.9370 49.20MM
Cut Rating High Temp, Titanium
Tap Square 0.1080
Flutes/Inserts 3
Flute Direction R - Right
Length Type Standard
Thread Limit D3
Tool Material Steel
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
