  • WIDIA/KENNAMETAL GT625069 9/16-18.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

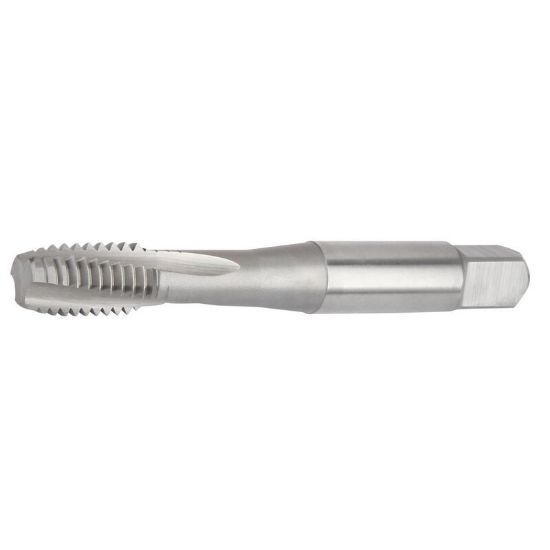

Picture of WIDIA/KENNAMETAL GT625069 9/16-18.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

WIDIA/KENNAMETAL GT625069 9/16-18.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT625069
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating TiN + CrC
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Shipping State Ohio
Dimensional Specifications
Tap Chamfer 2.5P-3.0P
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Pitch 18.00TPI
Tap Style Cut Spiral Flute
Thread Size 9/16"
Tool Material Steel
Shank/Pilot Dia 0.4290 10.90MM
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Drill Range 0.5047 12.82MM - 0.5189 13.18MM
Thread Limit H3/GH3
Flute Direction R - Right
Cut Rating High Temp, Titanium
Flutes/Inserts 4
Length Type Standard
Overall Len 3.5940 91.29MM
Tap Square 0.3190
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Mold Yes
Automotive Yes
Job Shop Yes
