  • WIDIA/KENNAMETAL GT625062 1/2-13.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

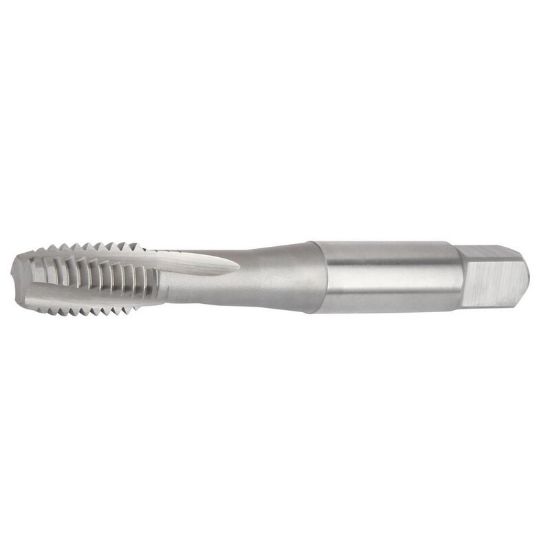

Picture of WIDIA/KENNAMETAL GT625062 1/2-13.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

WIDIA/KENNAMETAL GT625062 1/2-13.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT625062
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Mod Bottom Tapping, Tapping
Performance Rating High Performance
Coating TiN + CrC
Made In USA No
Shipping State Ohio
Package Size 1
Dimensional Specifications
Overall Len 3.3800 85.85MM
Flutes/Inserts 3
Shank/Pilot Dia 0.3670 9.32MM
Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Dimension Standard ANSI/ANSI
Tap Chamfer 2.5P-3.0P
Flute Direction R - Right
Tap Square 0.2720
Length Type Standard
Machine Side Connection Type Tap Collet
Thread Pitch 13.00TPI
Thread Type NC/UNC
Thread Limit H3/GH3
Cut Rating High Temp, Titanium
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Size 1/2"
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Automotive Yes
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
