  • WIDIA/KENNAMETAL GT625042 5/16-24.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

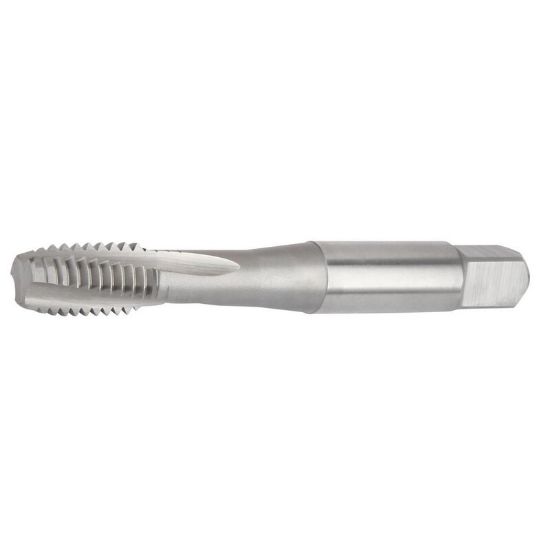

Picture of WIDIA/KENNAMETAL GT625042 5/16-24.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

WIDIA/KENNAMETAL GT625042 5/16-24.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT625042
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Package Size 1
Application Tapping, Cut Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating TiN + CrC
Made In USA No
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Square 0.2360
Thread Limit H3/GH3
Cut Rating High Temp, Titanium
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Tap Chamfer 2.5P-3.0P
Thread Size 5/16"
Flute Direction R - Right
Overall Len 2.7200 69.09MM
Length Type Standard
Flutes/Inserts 3
Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
