  • WIDIA/KENNAMETAL GT625041 5/16-24.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

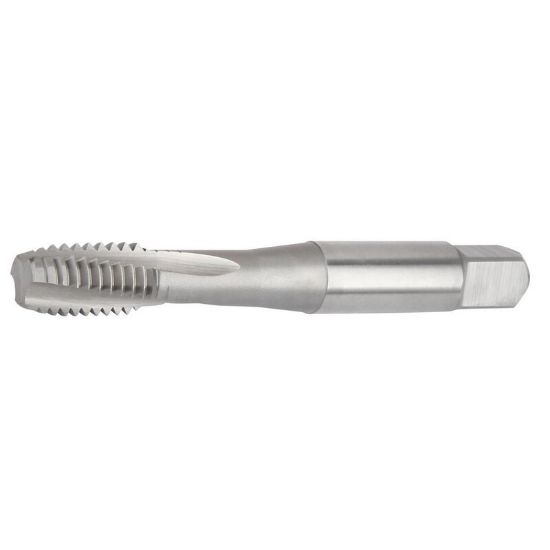

Picture of WIDIA/KENNAMETAL GT625041 5/16-24.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

WIDIA/KENNAMETAL GT625041 5/16-24.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT625041
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Ohio
Package Size 1
Coating TiN + CrC
Made In USA No
Dimensional Specifications
Thread Limit H3/GH3
Cut Rating High Temp, Titanium
Tool Material Steel
Thread Pitch 24.00TPI
Flutes/Inserts 3
Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Machine Side Connection Type Tap Collet
Tap Square 0.2360
Tap Type Mod Bottom
Tap Style Cut Spiral Flute
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Tap Chamfer 2.5P-3.0P
Thread Size 5/16"
Flute Direction R - Right
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 2.7200 69.09MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
