  • WIDIA/KENNAMETAL GT625024 No.10-32.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

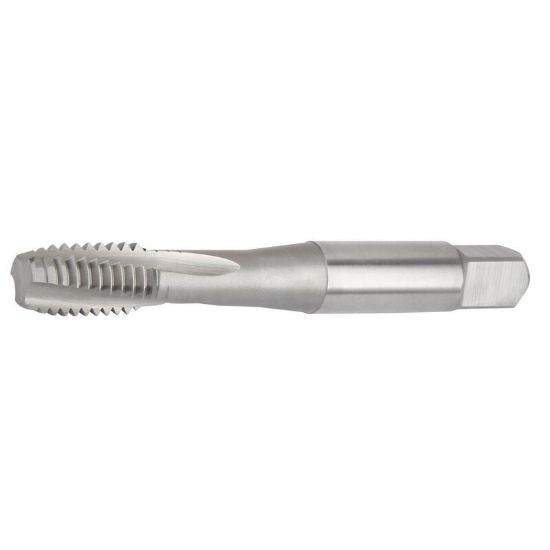

Picture of WIDIA/KENNAMETAL GT625024 No.10-32.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

WIDIA/KENNAMETAL GT625024 No.10-32.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT625024
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Ohio
Performance Rating High Performance
Package Size 1
Made In USA No
Coating TiN + CrC
Dimensional Specifications
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Thread Type NF/UNF/UNEF
Flutes/Inserts 3
Overall Len 2.3740 60.30MM
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Tap Style Cut Spiral Flute
Thread Limit H3/GH3
Flute Direction R - Right
Cut Rating High Temp, Titanium
Tap Square 0.1500
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tool Material Steel
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Tap Chamfer 2.5P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
