  • WIDIA/KENNAMETAL GT625022 No.10-24.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

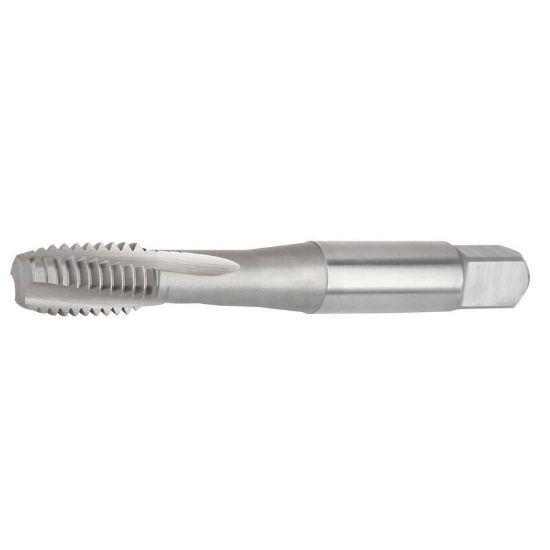

Picture of WIDIA/KENNAMETAL GT625022 No.10-24.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

WIDIA/KENNAMETAL GT625022 No.10-24.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT625022
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Ohio
Coating TiN + CrC
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Tap Square 0.1500
Tap Style Cut Spiral Flute
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tool Material Steel
Tap Chamfer 2.5P-3.0P
Overall Len 2.3740 60.30MM
Flutes/Inserts 3
Thread Pitch 24.00TPI
Dimension Standard ANSI/ANSI
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Cut Rating High Temp, Titanium
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
