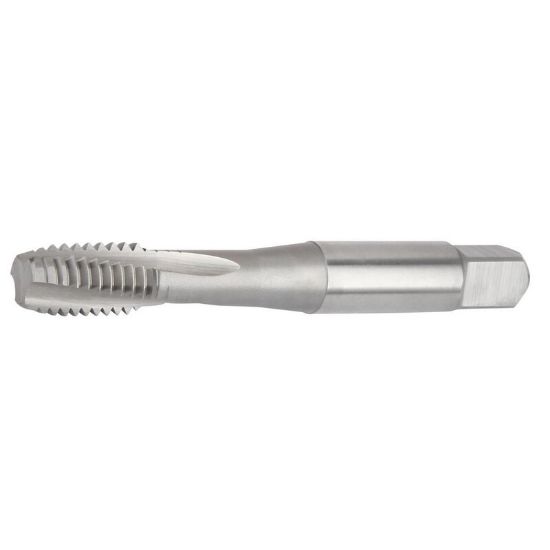

Picture of WIDIA/KENNAMETAL GT625021 No.10-24.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

WIDIA/KENNAMETAL GT625021 No.10-24.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT625021
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Package Size 1
Shipping State Ohio
Coating TiN + CrC
Made In USA No
Dimensional Specifications
Tool Material Steel
Thread Pitch 24.00TPI
Dimension Standard ANSI/ANSI
Tap Chamfer 2.5P-3.0P
Overall Len 2.3740 60.30MM
Flutes/Inserts 3
Thread Size No.10
Thread Type NC/UNC
Shank/Pilot Dia 0.1940 4.93MM
Tap Square 0.1500
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Limit H3/GH3
Flute Direction R - Right
Cut Rating High Temp, Titanium
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
