  • WIDIA/KENNAMETAL GT605519 M10-1.50MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

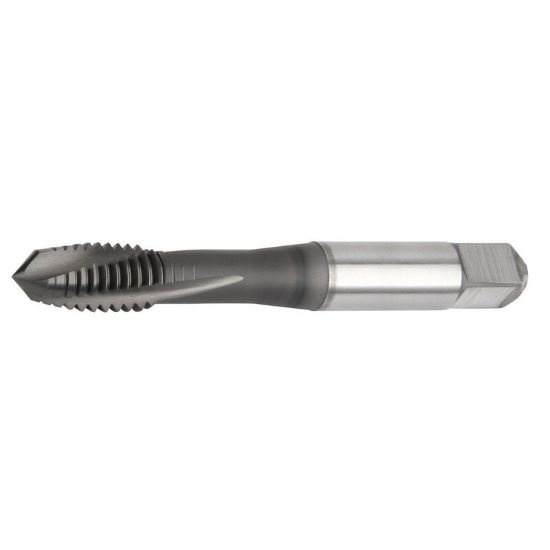

Picture of WIDIA/KENNAMETAL GT605519 M10-1.50MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

WIDIA/KENNAMETAL GT605519 M10-1.50MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT605519
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating TiN + CrC
Package Size 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Flute Direction R - Right
Cut Rating High Temp, Titanium
Shank/Pilot Dia 0.3810 9.68MM
Length Type Standard
Thread Pitch 1.50MM
Tool Material Steel
Tap Square 0.2840
Thread Type Metric
Thread Limit D6
Tap Chamfer 2.5P-3.0P
Overall Len 2.9220 74.22MM
Tap Style Cut Spiral Flute
Machine Side Connection Type Tap Collet
Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Type Mod Bottom
Thread Size M10
Dimension Standard ANSI/ANSI
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Mold Yes
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
