  • WIDIA/KENNAMETAL GT605515 M8-1.25MM Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiN + CrC

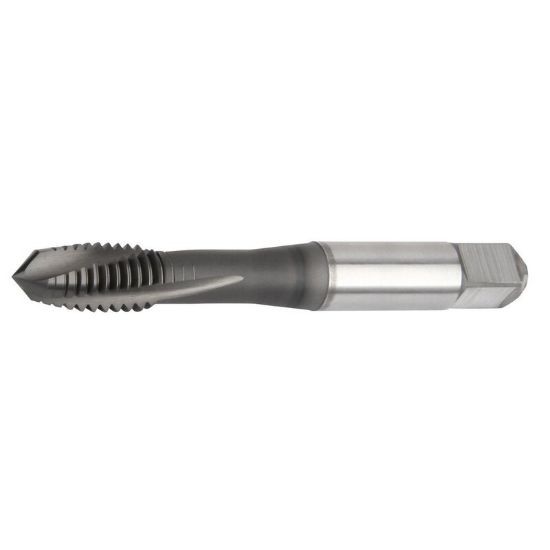

Picture of WIDIA/KENNAMETAL GT605515 M8-1.25MM Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiN + CrC

WIDIA/KENNAMETAL GT605515 M8-1.25MM Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT605515
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Coating TiN + CrC
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Size M8
Thread Type Metric
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Thread Limit D5
Machine Side Connection Type Tap Collet
Tap Square 0.2360
Flutes/Inserts 3
Tap Style Cut Spiral Flute
Thread Pitch 1.25MM
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Overall Len 2.7200 69.09MM
Length Type Standard
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Energy Yes
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
