  • WIDIA/KENNAMETAL GT605509 M5-0.80MM Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiN + CrC

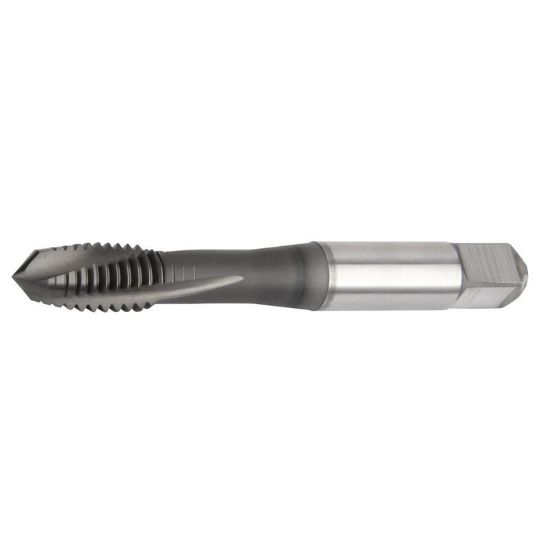

Picture of WIDIA/KENNAMETAL GT605509 M5-0.80MM Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiN + CrC

WIDIA/KENNAMETAL GT605509 M5-0.80MM Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT605509
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN + CrC
Made In USA No
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Shipping State Ohio
Package Size 1
Dimensional Specifications
Thread Limit D4
Flute Direction R - Right
Length Type Standard
Tap Style Cut Spiral Flute
Machine Side Connection Type Tap Collet
Thread Size M5
Flutes/Inserts 3
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Thread Type Metric
Dimension Standard ANSI/ANSI
Tool Material Steel
Overall Len 2.3740 60.30MM
Thread Pitch 0.80MM
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.1940 4.93MM
Tap Square 0.1500
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
