  • WIDIA/KENNAMETAL GT605505 M3-0.50MM Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiN + CrC

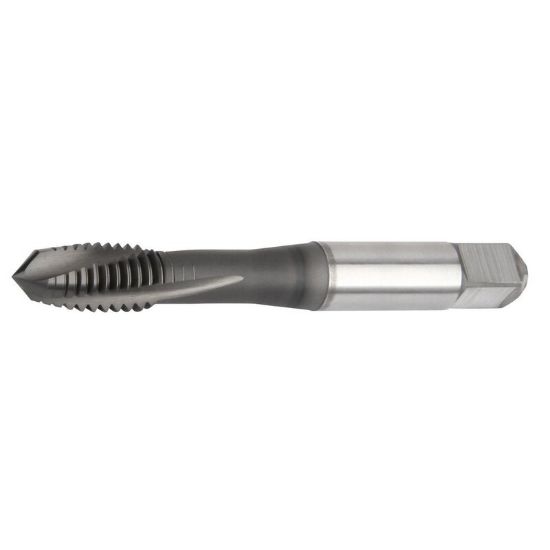

Picture of WIDIA/KENNAMETAL GT605505 M3-0.50MM Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiN + CrC

WIDIA/KENNAMETAL GT605505 M3-0.50MM Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT605505
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Package Size 1
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Made In USA No
Coating TiN + CrC
Dimensional Specifications
Thread Pitch 0.50MM
Shank/Pilot Dia 0.1410 3.58MM
Tap Chamfer 3.5P-5.0P
Tap Square 0.1080
Tap Style Cut Spiral Flute
Machine Side Connection Type Tap Collet
Dimension Standard ANSI/ANSI
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Thread Limit D3
Flutes/Inserts 3
Tool Material Steel
Thread Size M3
Thread Type Metric
Overall Len 1.9370 49.20MM
Drill Range 0.1083 2.75MM - 0.1106 2.81MM
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
