  • WIDIA/KENNAMETAL GT605503 M2.5-0.45MM Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiN + CrC

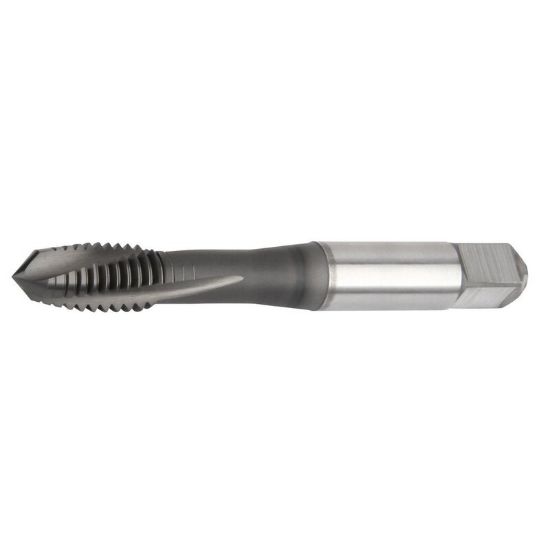

Picture of WIDIA/KENNAMETAL GT605503 M2.5-0.45MM Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiN + CrC

WIDIA/KENNAMETAL GT605503 M2.5-0.45MM Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT605503
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Shipping State Ohio
Performance Rating High Performance
Coating TiN + CrC
Made In USA No
Dimensional Specifications
Thread Pitch 0.45MM
Cut Rating <40HRC Steel, Stainless Steel
Tap Square 0.1080
Tool Material Steel
Thread Limit D3
Flutes/Inserts 3
Thread Size M2.5
Shank/Pilot Dia 0.1410 3.58MM
Thread Type Metric
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Dimension Standard ANSI/ANSI
Overall Len 1.8100 45.97MM
Flute Direction R - Right
Drill Range 0.0799 2.03MM - 0.0846 2.15MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
