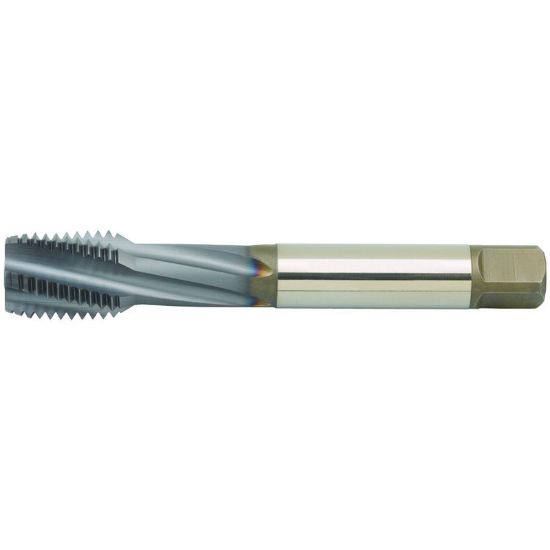

WIDIA/KENNAMETAL GT505001 M24-3.00MM Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT505001
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Bottom Tapping, Tapping
Performance Rating High Performance
Coating TiCN
Shipping State Ohio
Package Size 1
Dimensional Specifications
Thread Size M24
Thread Pitch 3.00MM
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Dimension Standard DIN/DIN
Tool Material Steel
Thread Limit 6H
Tap Square 0.5710
Tap Style Cut Spiral Flute
Thread Type Metric
Shank/Pilot Dia 0.7600 19.30MM
Machine Side Connection Type Tap Collet
Overall Len 6.2990 159.99MM
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Drill Range 0.8220 20.88MM - 0.8528 21.66MM
Tap Chamfer 1.0P-2.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
