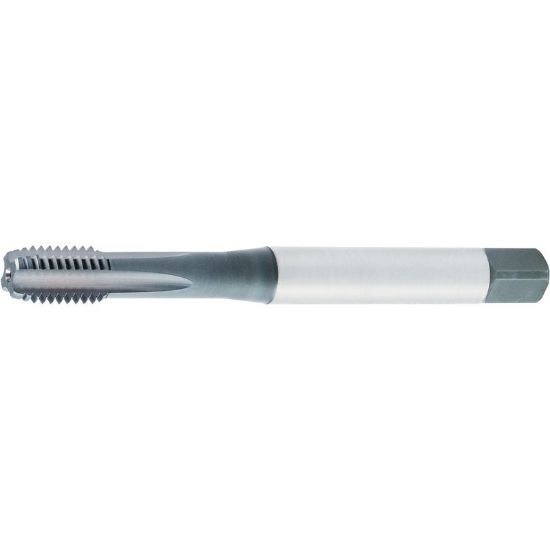

WIDIA/KENNAMETAL GT435009 M16-1.50MM Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT435009
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Tapping, Cut Tapping
Performance Rating High Performance
Package Size 1
Coating TiCN
Shipping State Ohio
Made In USA No
Dimensional Specifications
Tool Material Steel
Dimension Standard DIN/DIN
Tap Square 0.3540
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Tap Chamfer 1.0P-2.0P
Thread Type Metric
Shank/Pilot Dia 0.4724 12.00MM
Overall Len 3.9450 100.20MM
Thread Limit 6H
Tap Style Cut Spiral Flute
Machine Side Connection Type Tap Collet
Thread Size M16
Thread Pitch 1.50MM
Flute Direction R - Right
Drill Range 0.5724 14.54MM - 0.5839 14.83MM
Length Type Standard
Tap Type Bottoming
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
