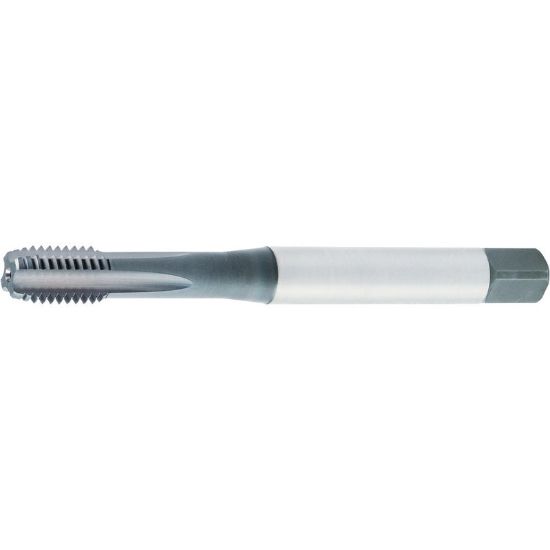

WIDIA/KENNAMETAL GT435001 M5-0.80MM Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT435001
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Tapping, Cut Tapping
Performance Rating High Performance
Shipping State Ohio
Coating TiCN
Made In USA No
Package Size 1
Dimensional Specifications
Thread Size M5
Shank/Pilot Dia 0.2362 6.00MM
Machine Side Connection Type Tap Collet
Tap Square 0.1930
Thread Pitch 0.80MM
Thread Type Metric
Tool Material Steel
Thread Limit 6H
Tap Style Cut Spiral Flute
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Cut Rating <40HRC Steel, Stainless Steel
Tap Chamfer 1.0P-2.0P
Dimension Standard DIN/DIN
Overall Len 2.7600 70.10MM
Flutes/Inserts 3
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
