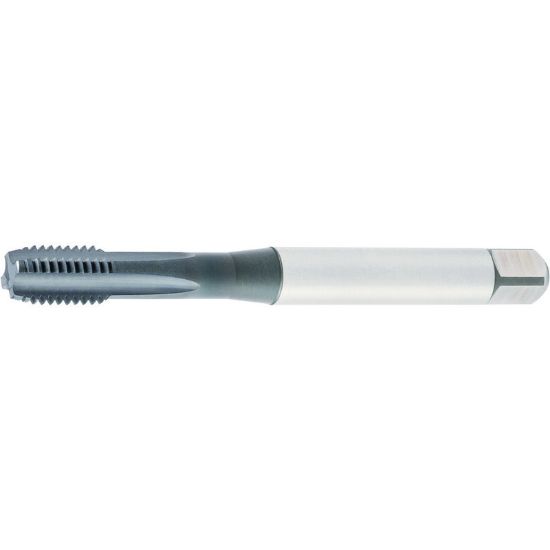

WIDIA/KENNAMETAL GT425006 M14-2.00MM Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT425006
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Package Size 1
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Shipping State Ohio
Made In USA No
Dimensional Specifications
Thread Size M14
Tool Material Steel
Tap Type Bottoming
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Chamfer 1.0P-2.0P
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.4331 11.00MM
Dimension Standard DIN/DIN
Thread Type Metric
Tap Square 0.3540
Thread Pitch 2.00MM
Overall Len 4.3300 109.98MM
Drill Range 0.4693 11.92MM - 0.4898 12.44MM
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
Aerospace Yes
Mold Yes
