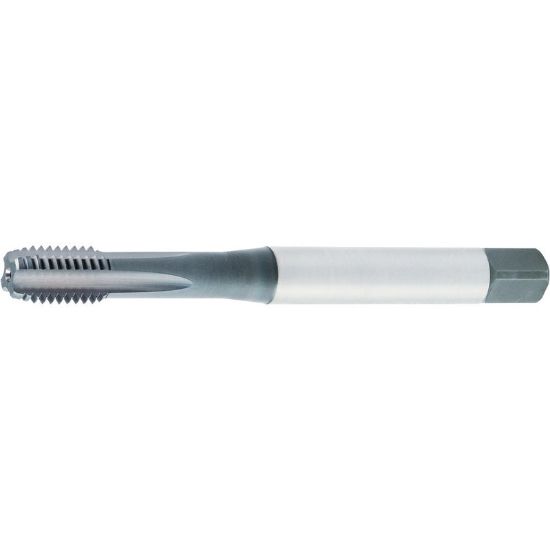

WIDIA/KENNAMETAL GT415008 M16-2.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT415008
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Mod Bottom Tapping, Tapping
Shipping State Ohio
Made In USA No
Package Size 1
Coating TiCN
Performance Rating High Performance
Dimensional Specifications
Dimension Standard DIN/DIN
Tap Square 0.3540
Thread Pitch 2.00MM
Thread Type Metric
Shank/Pilot Dia 0.4724 12.00MM
Machine Side Connection Type Tap Collet
Overall Len 4.3300 109.98MM
Thread Size M16
Flute Direction R - Right
Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Length Type Standard
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
