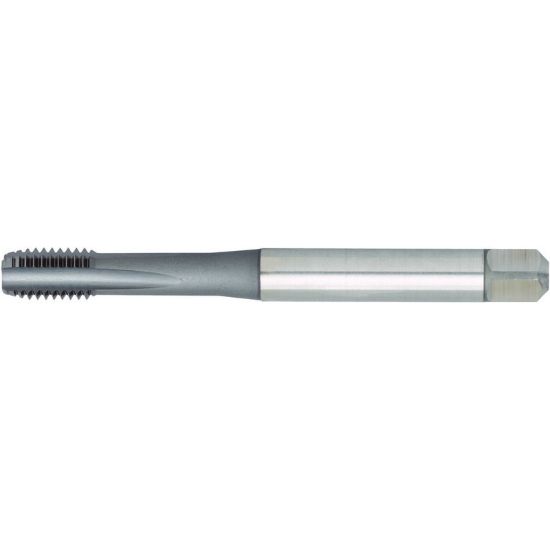

WIDIA/KENNAMETAL GT405059 M16-1.50MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT405059
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating TiCN
Package Size 1
Performance Rating High Performance
Made In USA No
Shipping State Ohio
Dimensional Specifications
Thread Type Metric
Shank/Pilot Dia 0.4724 12.00MM
Overall Len 3.9450 100.20MM
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Tap Square 0.3550
Dimension Standard DIN/DIN
Thread Pitch 1.50MM
Tool Material Steel
Tap Chamfer 2.5P-3.0P
Thread Size M16
Flute Direction R - Right
Drill Range 0.5724 14.54MM - 0.5839 14.83MM
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
