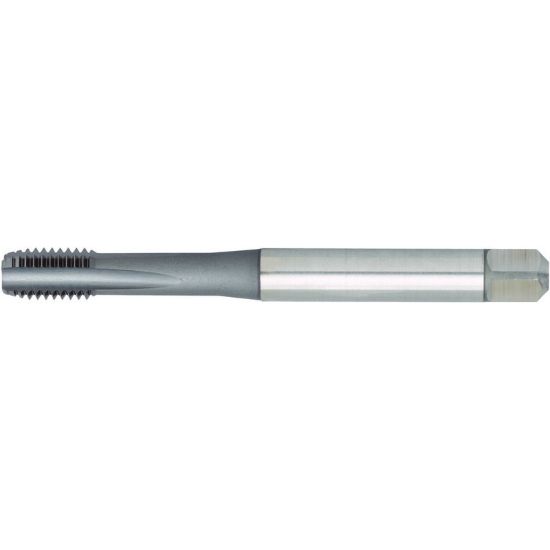

WIDIA/KENNAMETAL GT405058 M14-1.50MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT405058
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Package Size 1
Application Mod Bottom Tapping, Tapping, Cut Tapping
Shipping State Ohio
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Limit 6H
Shank/Pilot Dia 0.4331 11.00MM
Drill Range 0.4898 12.44MM - 0.5051 12.83MM
Tap Style Cut Spiral Flute
Overall Len 3.9450 100.20MM
Thread Type Metric
Tap Chamfer 2.5P-3.0P
Thread Size M14
Thread Pitch 1.50MM
Flute Direction R - Right
Length Type Standard
Tool Material Steel
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Tap Square 0.3550
Dimension Standard DIN/DIN
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
