  • WIDIA/KENNAMETAL GT405012 No.10-24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal Uncoated

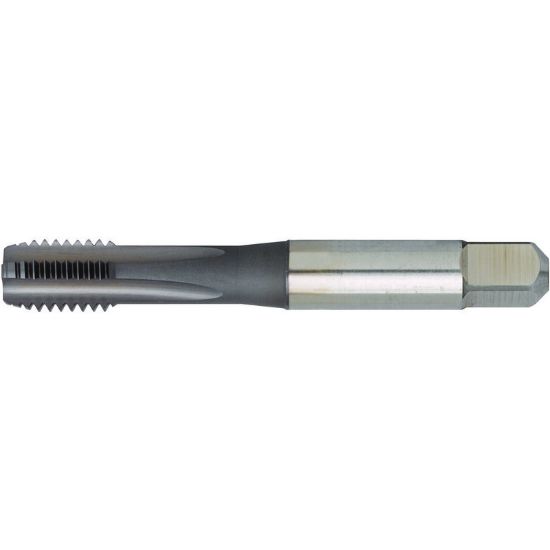

Picture of WIDIA/KENNAMETAL GT405012 No.10-24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal Uncoated

WIDIA/KENNAMETAL GT405012 No.10-24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT405012
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Package Size 1
Shipping State Ohio
Made In USA No
Dimensional Specifications
Tool Material Steel
Thread Pitch 24.00TPI
Dimension Standard ANSI/ANSI
Overall Len 2.3740 60.30MM
Thread Size No.10
Thread Limit 6H
Shank/Pilot Dia 0.1940 4.93MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tap Square 0.1520
Thread Type NC/UNC
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Aerospace Yes
Mold Yes
Agricultural YES
Energy Yes
