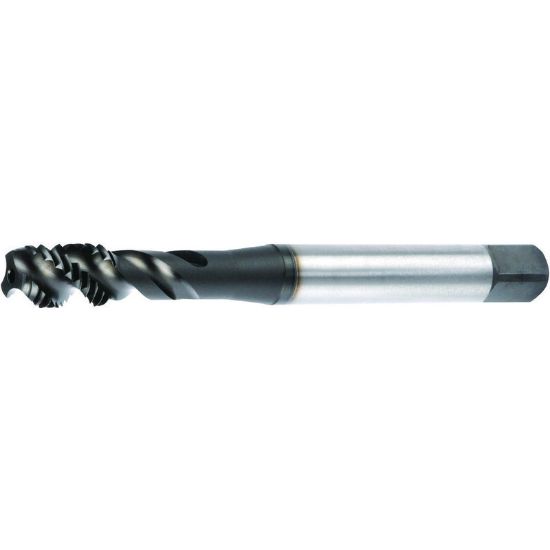

WIDIA/KENNAMETAL GT335003 M8-1.25MM Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT335003
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Bottom Tapping, Tapping
Made In USA No
Package Size 1
Shipping State Ohio
Coating TiCN
Performance Rating High Performance
Dimensional Specifications
Dimension Standard DIN/DIN
Flutes/Inserts 3
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Thread Pitch 1.25MM
Tool Material Steel
Overall Len 3.5430 89.99MM
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2440
Thread Size M8
Thread Type Metric
Shank/Pilot Dia 0.3150 8.00MM
Cut Rating <40HRC Steel, Stainless Steel
Tap Chamfer 1.0P-2.0P
Machine Side Connection Type Tap Collet
Thread Limit 6H
Tap Style Cut Spiral Flute
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
