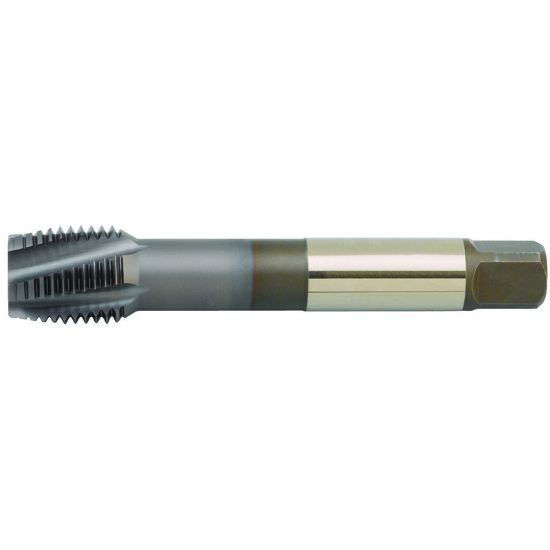

WIDIA/KENNAMETAL GT315035 M20-2.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT315035
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Package Size 1
Made In USA No
Coating TiCN
Dimensional Specifications
Thread Size M20
Shank/Pilot Dia 0.6299 16.00MM
Thread Pitch 2.50MM
Thread Type Metric
Drill Range 0.6850 17.40MM - 0.7106 18.05MM
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Overall Len 5.5120 140.00MM
Flutes/Inserts 4
Tap Chamfer 2.0P-3.0P
Dimension Standard DIN/DIN
Flute Direction R - Right
Length Type Standard
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Square 0.4720
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
