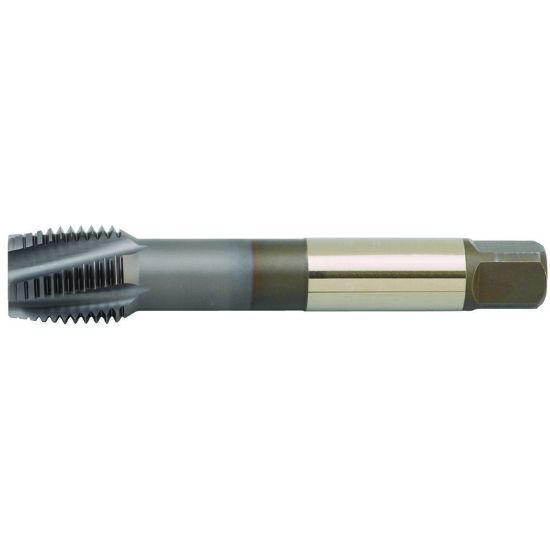

WIDIA/KENNAMETAL GT315030 M36-4.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT315030
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Package Size 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Ohio
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Type Metric
Tap Square 0.8660
Dimension Standard DIN/DIN
Flutes/Inserts 5
Tool Material Steel
Thread Size M36
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Pitch 4.00MM
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Shank/Pilot Dia 1.1024 28.00MM
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Overall Len 7.8740 200.00MM
Length Type Standard
Drill Range 1.2535 31.84MM - 1.2945 32.88MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
