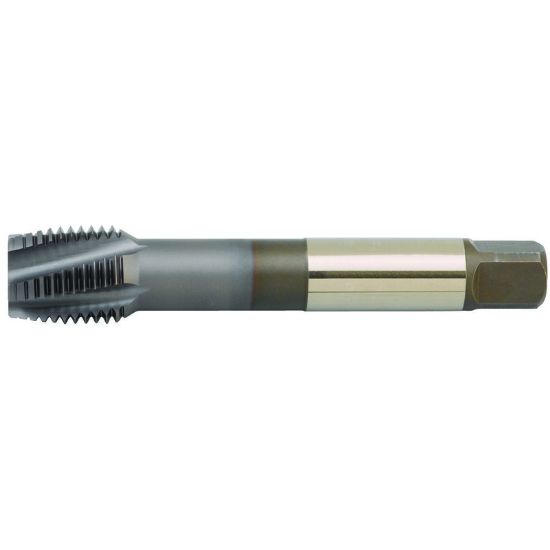

WIDIA/KENNAMETAL GT315027 M30-3.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT315027
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Tapping, Mod Bottom Tapping
Coating TiCN
Performance Rating High Performance
Shipping State Ohio
Package Size 1
Dimensional Specifications
Thread Pitch 3.50MM
Flute Direction R - Right
Length Type Standard
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.8661 22.00MM
Thread Size M30
Tool Material Steel
Flutes/Inserts 5
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Overall Len 7.0900 180.09MM
Tap Square 0.7090
Machine Side Connection Type Tap Collet
Thread Type Metric
Drill Range 1.0583 26.88MM - 1.0890 27.66MM
Cut Rating <40HRC Steel, Stainless Steel
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
