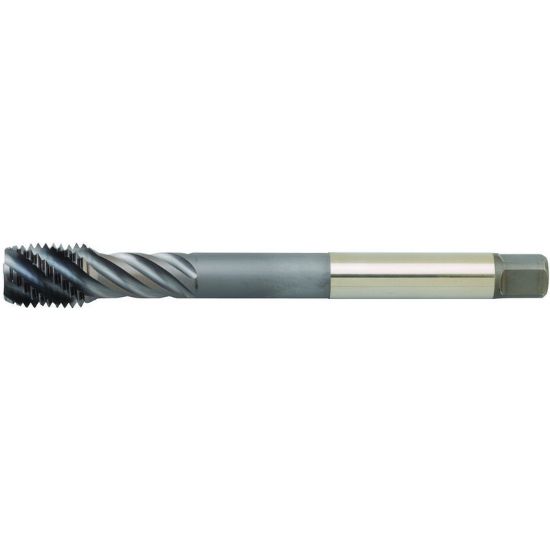

WIDIA/KENNAMETAL GT315017 M33-3.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT315017
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Ohio
Performance Rating High Performance
Coating TiCN
Package Size 1
Made In USA No
Dimensional Specifications
Tap Square 0.7870
Dimension Standard DIN/DIN
Flutes/Inserts 5
Drill Range 1.1559 29.36MM - 1.1917 30.27MM
Thread Size M33
Thread Limit 6H
Shank/Pilot Dia 0.9843 25.00MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Pitch 3.50MM
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Overall Len 9.8430 250.01MM
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tool Material Steel
Thread Type Metric
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Mold Yes
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
