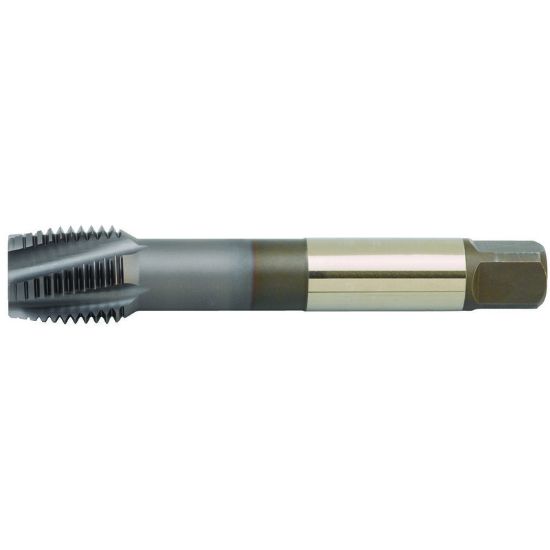

WIDIA/KENNAMETAL GT315010 M10-1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT315010
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating TiCN
Package Size 1
Shipping State Ohio
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Dimensional Specifications
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Machine Side Connection Type Tap Collet
Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Limit 6H
Tap Chamfer 2.0P-3.0P
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Size M10
Thread Type Metric
Shank/Pilot Dia 0.3937 10.00MM
Overall Len 3.9450 100.20MM
Tap Square 0.3150
Thread Pitch 1.50MM
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Energy Yes
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
