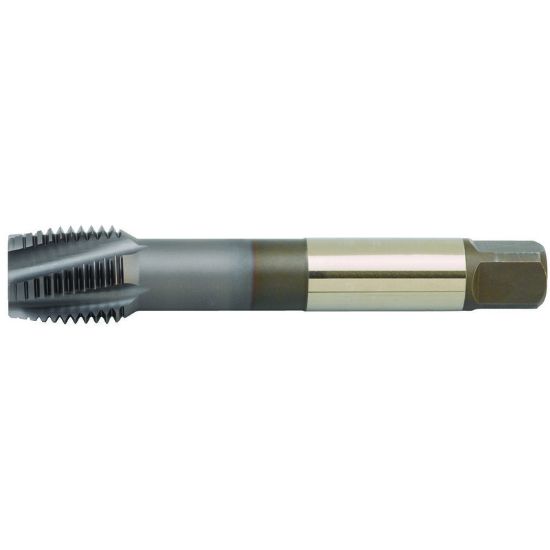

WIDIA/KENNAMETAL GT315008 M6-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT315008
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Ohio
Coating TiCN
Package Size 1
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Overall Len 3.1560 80.16MM
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Cut Rating <40HRC Steel, Stainless Steel
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Size M6
Tool Material Steel
Thread Type Metric
Shank/Pilot Dia 0.2362 6.00MM
Flute Direction R - Right
Length Type Standard
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Square 0.1930
Tap Type Mod Bottom
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
