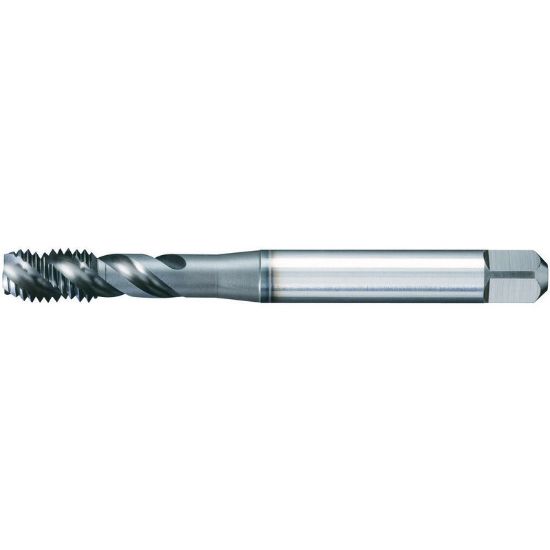

WIDIA/KENNAMETAL GT305161 M24-3.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT305161
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Package Size 1
Coating TiCN
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Overall Len 6.2990 159.99MM
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Drill Range 0.8220 20.88MM - 0.8528 21.66MM
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Tap Square 0.5710
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Size M24
Flute Direction R - Right
Length Type Standard
Dimension Standard DIN/DIN
Thread Pitch 3.00MM
Tool Material Steel
Flutes/Inserts 5
Thread Type Metric
Shank/Pilot Dia 0.7600 19.30MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
