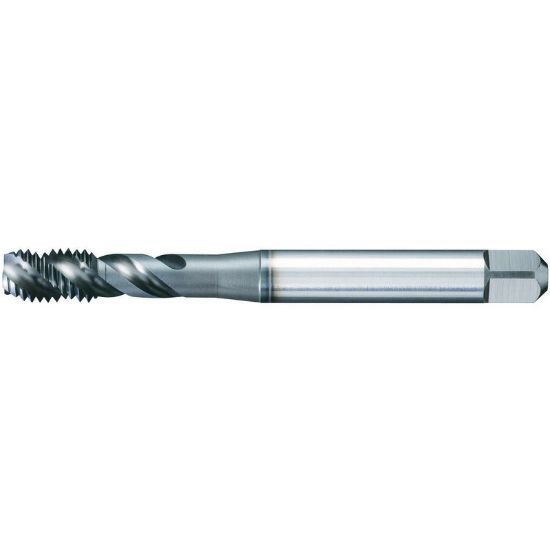

WIDIA/KENNAMETAL GT305119 M6-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT305119
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Ohio
Coating Steam Oxide
Performance Rating High Performance
Dimensional Specifications
Thread Size M6
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Type Metric
Shank/Pilot Dia 0.2362 6.00MM
Overall Len 3.1560 80.16MM
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Square 0.1930
Tap Type Mod Bottom
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
