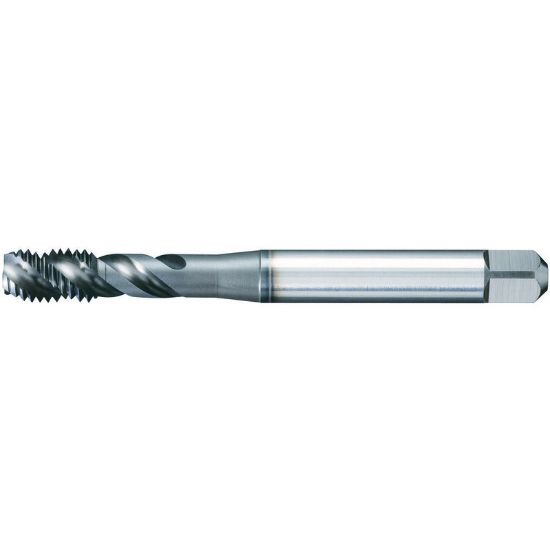

WIDIA/KENNAMETAL GT305118 M5-0.80MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT305118
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Coating Steam Oxide
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Ohio
Dimensional Specifications
Thread Type Metric
Shank/Pilot Dia 0.2362 6.00MM
Dimension Standard DIN/DIN
Overall Len 2.7600 70.10MM
Flutes/Inserts 3
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Thread Size M5
Machine Side Connection Type Tap Collet
Tap Square 0.1930
Tap Type Mod Bottom
Tool Material Steel
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Thread Pitch 0.80MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Mold Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
