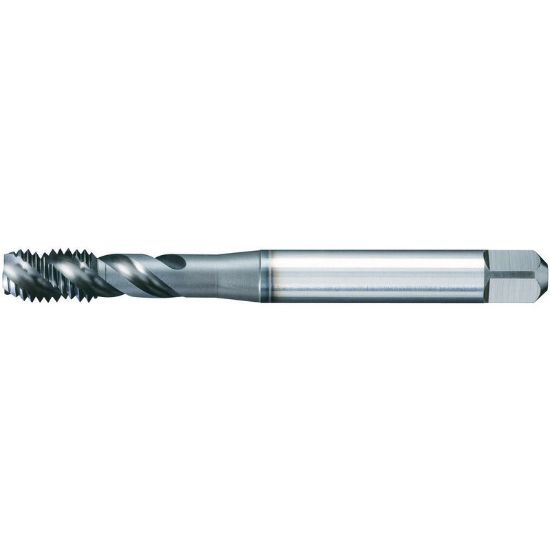

WIDIA/KENNAMETAL GT305099 M5-0.80MM Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT305099
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Tapping, Cut Tapping
Performance Rating High Performance
Package Size 1
Made In USA No
Coating TiCN
Shipping State Ohio
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Square 0.1930
Thread Type Metric
Shank/Pilot Dia 0.2362 6.00MM
Thread Size M5
Dimension Standard DIN/DIN
Overall Len 2.7600 70.10MM
Flutes/Inserts 3
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Cut Rating <40HRC Steel, Stainless Steel
Tap Chamfer 1.0P-2.0P
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Thread Limit 6H
Tap Style Cut Spiral Flute
Tool Material Steel
Thread Pitch 0.80MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Automotive Yes
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
