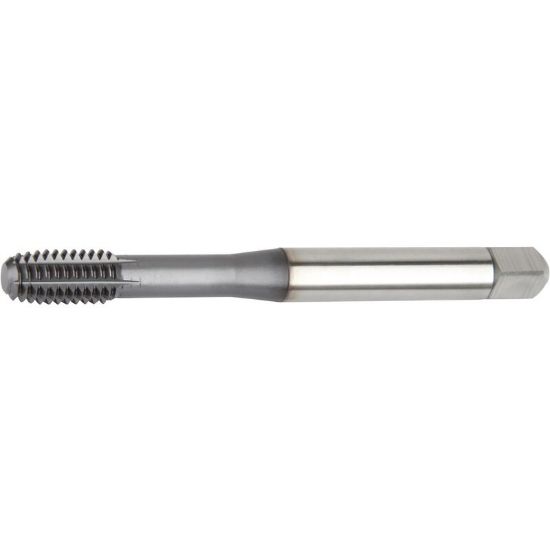

WIDIA/KENNAMETAL GT245016 5/16-24.00TPI Over Sized Roll Form Mod Bottom 2.5P-3.0P HSSE TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT245016
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating TiCN
Application Tapping, Blind Hole Tapping, Mod Bottom Tapping, Over Sized Tapping, Roll Form Tapping
Performance Rating High Performance
Shipping State Ohio
Made In USA No
Dimensional Specifications
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Tap Chamfer 2.5P-3.0P
Thread Limit GH7 +0.0035
Tap Style Over Sized Roll Form
Drill Range 0.2909 7.39MM - 0.2969 7.54MM
Tap Square 0.2360
Thread Size 5/16"
Flute Direction R - Right
Overall Len 3.5600 90.42MM
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
