  • WIDIA/KENNAMETAL GT235018 M8-1.00MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN

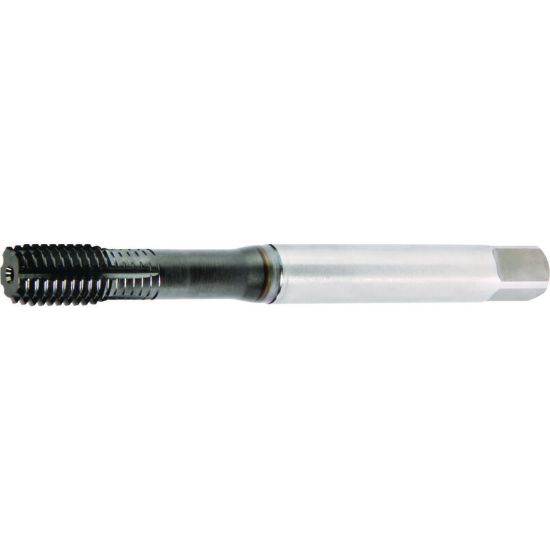

Picture of WIDIA/KENNAMETAL GT235018 M8-1.00MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN

WIDIA/KENNAMETAL GT235018 M8-1.00MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT235018
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Roll Form Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating High Performance
Package Size 1
Shipping State Ohio
Coating TiN
Made In USA No
Dimensional Specifications
Tool Material Steel
Drill Range 0.2949 7.49MM - 0.3004 7.63MM
Tap Square 0.2440
Thread Type Metric
Dimension Standard DIN/DIN
Cut Rating <40HRC Steel, Stainless Steel
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Thread Size M8
Shank/Pilot Dia 0.3150 8.00MM
Thread Limit 6H
Tap Type Mod Bottom
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Flute Direction R - Right
Overall Len 3.5430 89.99MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
