  • WIDIA/KENNAMETAL GT225012 M12-1.25MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal DLC

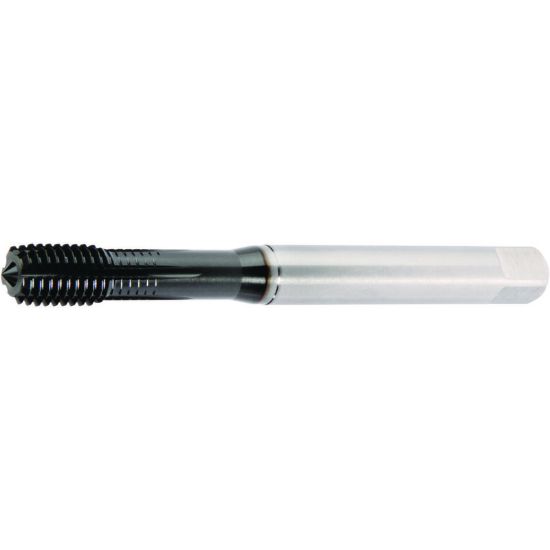

Picture of WIDIA/KENNAMETAL GT225012 M12-1.25MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal DLC

WIDIA/KENNAMETAL GT225012 M12-1.25MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT225012
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping
Shipping State Ohio
Package Size 1
Coating DLC
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Pitch 1.25MM
Tool Material Steel
Thread Type Metric
Drill Range 0.4472 11.36MM - 0.4539 11.53MM
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.3543 9.00MM
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Thread Limit 6H
Tap Type Mod Bottom
Flute Direction R - Right
Overall Len 3.9370 100.00MM
Length Type Standard
Machine Side Connection Type Tap Collet
Thread Size M12
Dimension Standard DIN/DIN
Tap Square 0.2760
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
