  • WIDIA/KENNAMETAL GT225008 M16-2.00MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal DLC

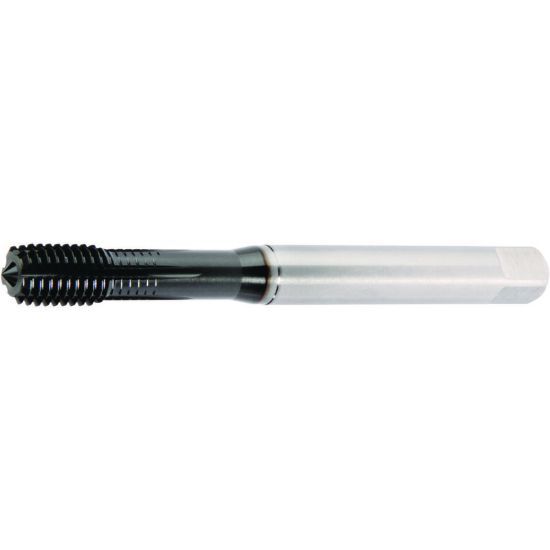

Picture of WIDIA/KENNAMETAL GT225008 M16-2.00MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal DLC

WIDIA/KENNAMETAL GT225008 M16-2.00MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT225008
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Roll Form Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Coating DLC
Performance Rating High Performance
Shipping State Ohio
Package Size 1
Dimensional Specifications
Thread Size M16
Flute Direction R - Right
Length Type Standard
Dimension Standard DIN/DIN
Overall Len 4.3310 110.01MM
Tap Square 0.3540
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Drill Range 0.5898 14.98MM - 0.6004 15.25MM
Thread Pitch 2.00MM
Thread Type Metric
Shank/Pilot Dia 0.4724 12.00MM
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
