  • WIDIA/KENNAMETAL GT225007 M12-1.75MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal DLC

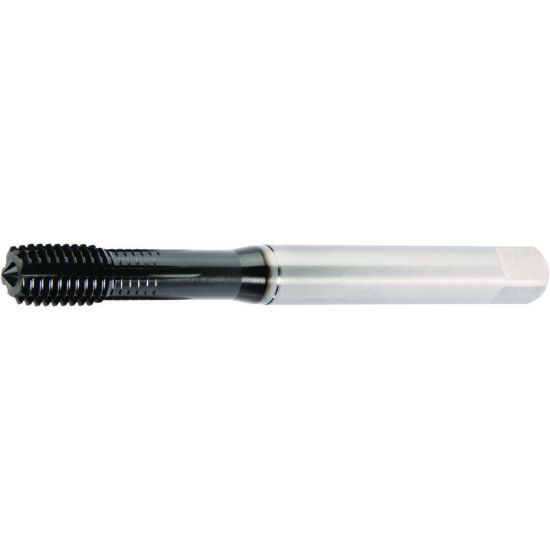

Picture of WIDIA/KENNAMETAL GT225007 M12-1.75MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal DLC

WIDIA/KENNAMETAL GT225007 M12-1.75MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT225007
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Blind Hole Tapping, Mod Bottom Tapping, Tapping
Performance Rating High Performance
Shipping State Ohio
Made In USA No
Package Size 1
Coating DLC
Dimensional Specifications
Thread Size M12
Dimension Standard DIN/DIN
Tap Square 0.2760
Thread Type Metric
Thread Pitch 1.75MM
Machine Side Connection Type Tap Collet
Flute Direction R - Right
Length Type Standard
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.3543 9.00MM
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Overall Len 4.3310 110.01MM
Drill Range 0.4374 11.11MM - 0.4469 11.35MM
Thread Limit 6H
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
