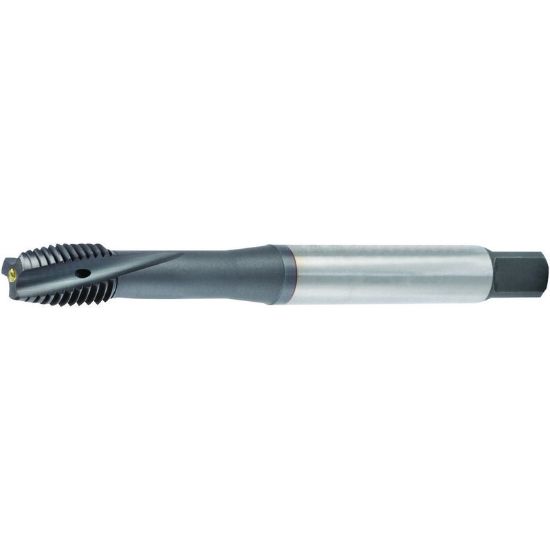

WIDIA/KENNAMETAL GT215009 M8-1.25MM Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT215009
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Package Size 1
Application Cut Tapping, Through Hole Tapping, Plug Tapping, Tapping
Performance Rating High Performance
Made In USA No
Shipping State Ohio
Dimensional Specifications
Thread Size M8
Thread Type Metric
Shank/Pilot Dia 0.3150 8.00MM
Tap Type Plug
Thread Limit 6H
Tap Style Cut Spiral Flute
Cut Rating <40HRC Steel, Stainless Steel
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Pitch 1.25MM
Tool Material Steel
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Flute Direction R - Right
Overall Len 3.5430 89.99MM
Tap Square 0.2410
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Chamfer 3.0P-5.5P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
